Polymer thiab cov ntaub ntawv yas

Cov ntaub ntawv yas muaj ntau yam zoo heev, suav nrog lub zog siab, siab modulus, kub tsis kam, hnav tsis kam, thiab tshuaj tiv thaiv corrosion. Lawv feem ntau muab faib ua peb pawg: siab- cov yas kub, cov yas engineering dav dav, thiab cov yas tshwj xeeb engineering, nrog rau kev siv dav dav hauv kev lag luam xws li aviation, automotive, electronics, thiab machinery. Hauv cov txheej txheem semiconductor, cov yas yog siv rau kev ntim khoom thiab kev thauj mus los, txuas ntau theem ua haujlwm, tiv thaiv kev kis kab mob thiab kev puas tsuaj, ua kom muaj kev tiv thaiv kab mob, thiab yog li txhim kho cov txiaj ntsig ntawm cov txheej txheem tseem ceeb xws li tshuaj lom neeg polishing, wafer tu, photolithography, etching, ion implantation, ntim, thiab ntim. Cov ntaub ntawv yas siv feem ntau suav nrog PEEK, PPS, POM, fluoroplastics, PI, PMMA, PP, ABS, PVC, PBT, PC, thiab PAI.
Specifications thiab qhov ntev: Kev ua haujlwm tuaj yeem ua raws li cov duab kos lossis cov qauv.

Xa kev nug

Cov khoom tseem ceeb

High-Kev Ua Haujlwm Zoo Tshaj Plaws

Customized khoom ua los ntawm PP, POM, PPS, PTFE, PCTFE, PEEK, PEI, PI, thiab lwm yam ntaub ntawv.

Nyeem ntxiv

Kev Cai Tshwj Xeeb Engineering Plastics

Siab -Kev ua tau zoo PEEK/PI cov ntaub ntawv nrog rau cov cua sov / tshuaj tiv thaiv, tsis tshua muaj kev sib txhuam, thiab lub teeb yuag.

Nyeem ntxiv

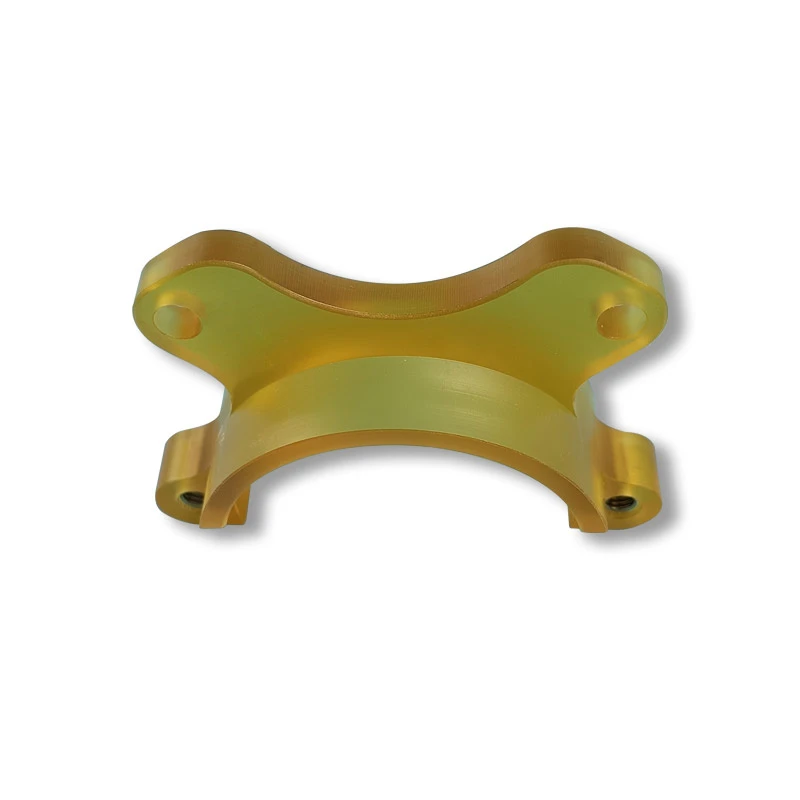

Semicircular Fixture

Semicircular fixtures nrog cov qauv ruaj khov thiab txhim khu kev qha kev sib dhos.

Nyeem ntxiv

Engineering Plastic Pin

Engineering yas pins nrog lub zog siab, hnav tsis kam thiab ua haujlwm ntev.

Nyeem ntxiv

Nta

Siab zog
Siab modulus

Thaum tshav kub kub kuj
Hnav tsis kam
Tshuaj tiv thaiv corrosion

Polymer thiab cov khoom siv yas

Material Matrix			Polymer thiab cov ntaub ntawv yas
Cov khoom	Yam khoom	Chav tsev	PE	PEB	POM	PVC	ABS
Lub cev khoom	Xim		Opaque	Pob tshab	Dawb & Dub	Translucent	Lub teeb Ivory
	Qhov ntom	g/cm³	0.93	1.26	1.41	1.42	1
	Kev nqus dej	%	0.31	0.2	0.25	0.48	0.52
Mechanical Behavior	Vickers Hardness	GPa	-	-	-	-	70
	Khoov zog	Mpa	180	212	90	60	48
	Compressive zog	Mpa	-	-		1.5	45-50
	Young's Modulus	GPa	0.1-2	-	2.45	2.9-3.4	7-12
	Poisson tus ratio	/	0-0.5	-	0.28	0.4	0.394
Thermal khoom	Coefficient ntawm Thermal Expansion	10^-6/ degree		22	7.8	80	7.4
	Thermal conductivity	W/(m.K)	0.42	0.3	0.23	0.16	0.03
	Tshwj xeeb kub muaj peev xwm	J/(g.K)	1.84	-	-	-	1.47
	Ua haujlwm kub siab tshaj plaws	degree	95	260	190	80	80
Hluav taws xob khoom	Dielectric zog	kv/mm	45	24	20	-	-
	Dielectric qhov tsis tu ncua (1MHz)	-	2.2-2.4	3.2	3.8-4.1	3-6	2.4-3.5
	Volume Resistivity 20 degree	Ω cm	>10¹³	>10¹³	10⁸-10¹²	-	-

* Cov khoom muaj nqis uas tau teev tseg yog cov txiaj ntsig nruab nrab tau los ntawm cov qauv kuaj thiab tsis tau lees paub. Thov nco ntsoov tias cov txiaj ntsig no yuav txawv rau cov khoom tsim tshwj xeeb.

Polymer thiab yas ntaub ntawv thov nyob rau hauv ntau yam lag luam

Auto & Tsheb thauj mus los:Siv nyob rau hauv kev tsim khoom xws li bumpers, instrument panels, thiab engine intake manifolds, txo lub zog noj los ntawm lub teeb yuag tsim thaum muab zoo heev cuam tshuam tsis kam thiab tshuaj stability.
Electronics & Hluav taws xob cov khoom siv:Ua haujlwm tseem ceeb rau cov tsev txawb xov tooj, cov khoom sib txuas, cov yeeb yaj kiab insulating, thiab cov khoom siv nti, muab cov khoom siv hluav taws xob zoo tshaj plaws, tiv thaiv tshav kub, nplaim hluav taws, thiab tsim qauv tsim.
Cov cuab yeej kho mob:Ua hauj lwm hauv kev tsim cov koob txhaj tshuaj pov tseg, cov hnab ntim tshuaj, cov pob qij txha, thiab kev phais phais, ua kom tau raws li qhov yuav tsum tau muaj rau biocompatibility, tsis muaj menyuam, thiab tiv thaiv kom tsis muaj menyuam.
Semiconductor Manufacturing:Siv rau cov neeg nqa khoom wafer, cov khoom siv hauv chav huv huv, thiab cov kav dej, uas muaj cov khoom siv siab tshaj - siab purity, tsawg outgassing, thiab plasma corrosion kuj.
Muaj Machinery:Siv rau hauv kev tsim khoom hnav-cov khoom tiv taus xws li lub zog, cov kabmob, thiab cov ntaub ntawv qhia kev tsheb nqaj hlau, hloov cov hlau kom txo cov suab nrov, qhov hnyav, thiab cov nqi kho.
Zog & Lub Zog:Siv nyob rau hauv photovoltaic module backsheets, cable rwb thaiv tsev txheej, thiab roj teeb casings, muab huab cua tiv thaiv, hluav taws xob rwb thaiv tsev, thiab thermal tswj kev them nyiaj yug.
