Nta

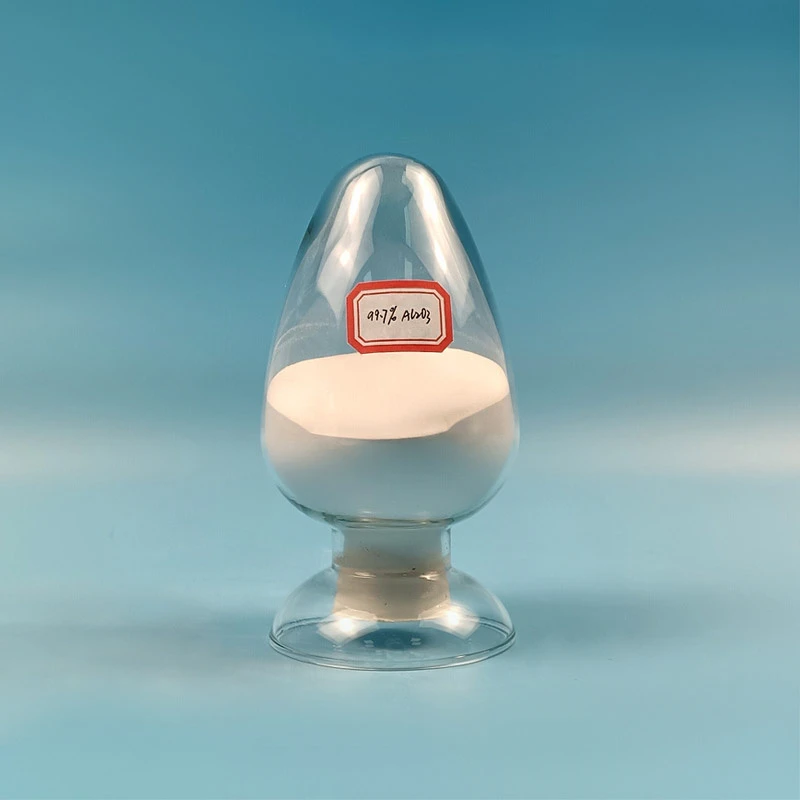

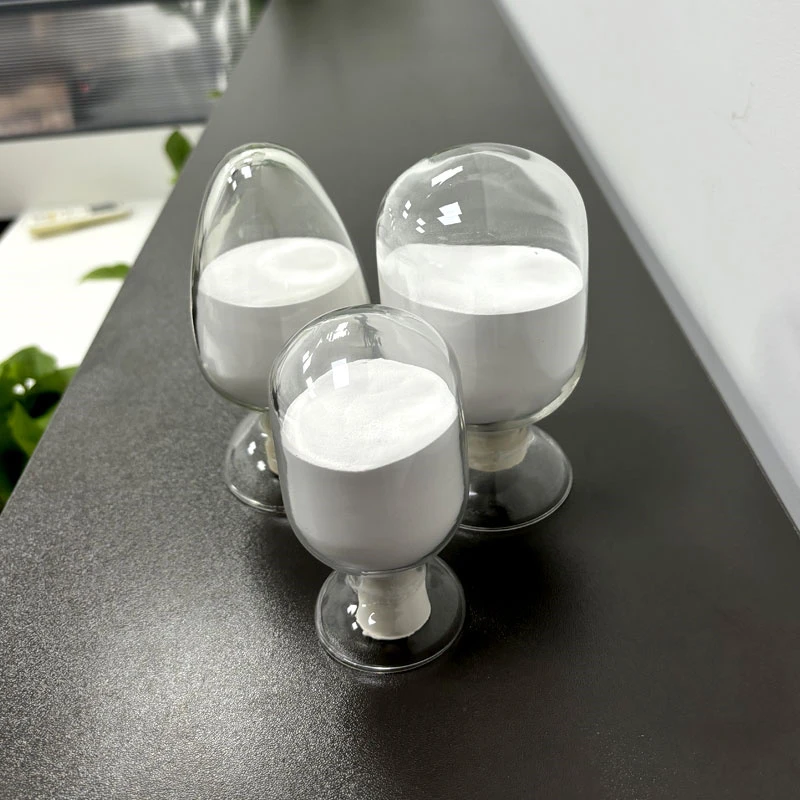

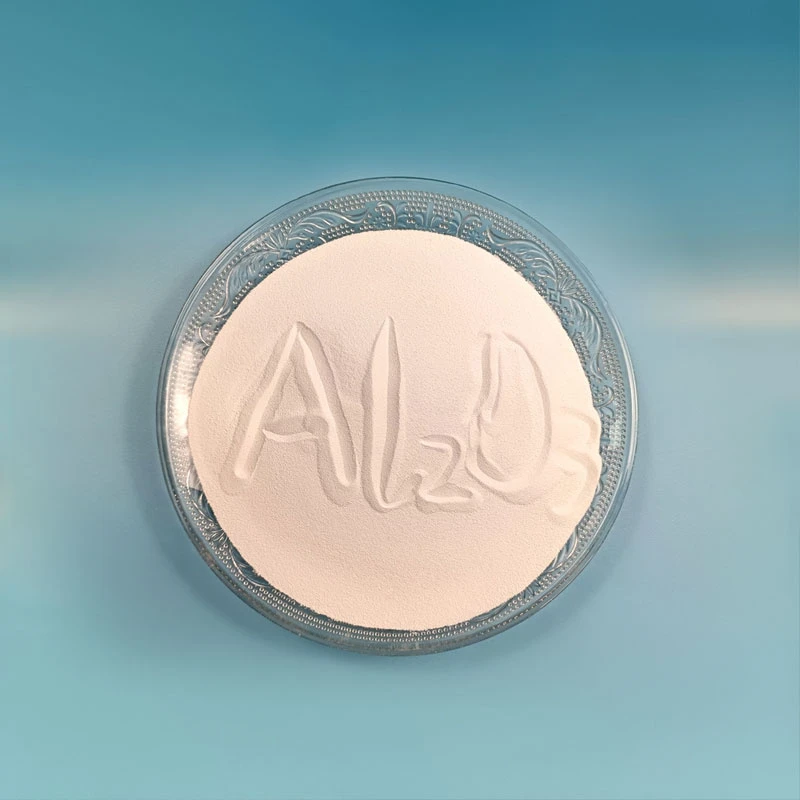

Peb tsim cov khoom siab tshaj -purity nrog purities ntawm 99%, 99.5%, 99.7%, thiab 99.9%. Cov ntaub ntawv siab -purity alumina no muaj cov khoom siv zoo heev thiab kev tiv thaiv corrosion, ua rau lawv tsim nyog rau kev tsim cov khoom loj - nplai. Tsis tas li ntawd, vim lawv cov ntshav plasma zoo, cov ntaub ntawv no tuaj yeem siv rau hauv cov khoom siv semiconductor CVD lossis cov khoom siv etching.
- Kub-resistant
- Abrasion-resistant
- Corrosion-resistant
- High dielectric zog
- Hluav taws xob insulators
- Plasma Resistance
Alumina Khoom
|
Material Matrix |
Alumina |
||||||||
|
Cov khoom |
Yam khoom |
Chav tsev |
TSV-AZ025A |
TSV -A950A |
TSV -A990A |
TSV -A995A |
TSV-A997A |
TSV -A997B |
TSV-A999A |
|
Lub cev khoom |
Cov ntsiab lus |
% |
- |
95.0% |
99.0% |
99.5% |
99.7% |
99.7% |
99.9% |
|
Xim |
|
Milky Dawb |
Dawb |
Dawb |
Milky Dawb |
Milky Dawb |
Milky Dawb |
Dawb |
|
|
Qhov ntom |
g/cm3 |
4.4 |
3.7 |
3.8 |
3.9 |
3.92 |
3.94 |
3.95 |
|
|
Mechanical Behavior |
Vickers Hardness |
GPa |
15 |
13.7 |
15.2 |
16.0 |
17.2 |
17.2 |
17.5 |
|
Khoov zog |
Mpa |
650 |
350 |
310 |
360 |
380 |
380 |
400 |
|
|
Compressive zog |
Mpa |
- |
- |
2160 |
2350 |
2380 |
2400 |
2560 |
|
|
Young's Modulus |
GPa |
320 |
320 |
360 |
370 |
380 |
380 |
380 |
|
|
Poisson tus ratio |
/ |
0.25 |
0.23 |
0.23 |
0.23 |
0.23 |
0.23 |
0.23 |
|
|
Fracture Toughness |
Mpa.m1/2 |
5 |
3-4 |
3-4 |
4 |
4.8 |
5 |
5.4 |
|
|
Thermal khoom |
Coefficient ntawm Thermal Expansion |
10-6/ degree |
9 |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
|
Thermal conductivity |
W/(m.K) |
19 |
24 |
29 |
32 |
32 |
32 |
34 |
|
|
Tshwj xeeb kub muaj peev xwm |
J/(g.K) |
- |
0.78 |
0.79 |
0.78 |
0.79 |
0.79 |
0.78 |
|
|
Ua haujlwm kub siab tshaj plaws |
degree |
1600 |
1500 |
1600 |
1600 |
1600 |
1600 |
1600 |
|
|
Hluav taws xob khoom |
Dielectric zog |
kv/mm |
- |
15 |
15 |
15 |
15 |
15 |
15 |
|
Dielectric qhov tsis tu ncua (1MHz) |
- |
- |
9.4 |
9.9 |
9.9 |
9.9 |
9.9 |
9.9 |
|
|
Dielectric Losses (1MHz) |
(X10-4) |
- |
4 |
2 |
1 |
1 |
1 |
1 |
|
|
Volume Resistivity 20 degree |
Ω cm |
>1012 |
>1014 |
>1014 |
>1014 |
>1014 |
>1014 |
>1014 |
|
|
Volume Resistivity 300 degree |
Ω cm |
- |
1010 |
1010 |
1013 |
1013 |
1013 |
1013 |
|
* Cov khoom muaj nqis uas tau teev tseg yog cov txiaj ntsig nruab nrab tau los ntawm cov qauv kuaj thiab tsis tau lees paub. Thov nco ntsoov tias cov txiaj ntsig no yuav txawv rau cov khoom tsim tshwj xeeb.
Alumina daim ntawv thov nyob rau hauv ntau yam lag luam
- Cov khoom siv semiconductor:Cheebtsam xws li chamber qhov chaw, insulating flanges, etching khoom qhov chaw, thiab wafer chucks leverage lawv siab purity, corrosion kuj, thiab hluav taws xob rwb thaiv tsev zog kom ruaj khov thiab kev ntseeg siab nyob rau hauv lub semiconductor manufacturing txheej txheem.
- Integrated Circuits:Siv los ua substrates thiab ntim khoom, alumina zoo heev rwb thaiv tsev thiab thermal conductivity txhim khu kev ua tau zoo thiab kub dissipation efficiency ntawm integrated circuits.
- Crusher Cheebtsam:Sab hauv thiab sib tsoo xov xwm rau cov khoom siv xws li classifiers, cua dav hlau mills, thiab hlaws mills tau txais txiaj ntsig los ntawm kev ua haujlwm siab thiab hnav tsis kam, ua kom zoo dua crushing efficiency thiab txuas cov khoom siv lifespan.
- General Industrial Parts:Cheebtsam zoo li nozzles rau laser ua tshuab, shafts, thiab bearings yog tsim los ua kom tau raws li ntau yam kev xav tau, ua tsaug rau lawv zoo heev hnav tsis kam, kub tsis kam, thiab mechanical zog.
- Hnav- Cov Cheebtsam uas tiv taus:Cov khoom xws li cov lus qhia rau cov tshuab kos duab, cov xaim xaim, thiab cov ntsia hlau tswj qhov zoo ntawm qhov raug thiab qhov zoo ntawm qhov sib txhuam ntev, txo cov nqi kho thiab hloov cov nqi.
- High-Cov cuab yeej Precision:Fixtures thiab sib dhos jigs muab siab precision thiab stability rau precision machining thiab sib dhos, kom ntseeg tau cov khoom zoo thiab ntau lawm efficiency.
- Hluav taws xob rwb thaiv tsev Cheebtsam:Insulators, gaskets, thiab bushings siv lawv cov khoom siv hluav taws xob zoo tshaj plaws los xyuas kom muaj kev nyab xeeb ntawm cov khoom siv hluav taws xob, tiv thaiv cov teeb meem xws li xau thiab luv luv.
- Kev Kho Mob Field:Siv los ua cov khoom siv tshuaj thiab cov ntaub ntawv kho hniav, alumina pom zoo biocompatibility thiab tshuaj lom neeg ruaj khov, ua rau tsis muaj kev phom sij rau tib neeg lub cev.
- Cav Cheebtsam:Cov khoom xws li combustion chamber Cheebtsam hauv automotive engines feature low thermal conductivity thiab high thermal expansion coefficients, kom ntseeg tau tias kev ua tau zoo nyob rau hauv qhov kub thiab txias.
- Automotive qhov chaw:Alumina yog siv rau hauv kev tsim cov hluav taws xob hluav taws xob hluav taws xob thiab cov nres nres, txhim kho kev ua haujlwm thiab kev ua neej nyob ntawm cov khoom no.
