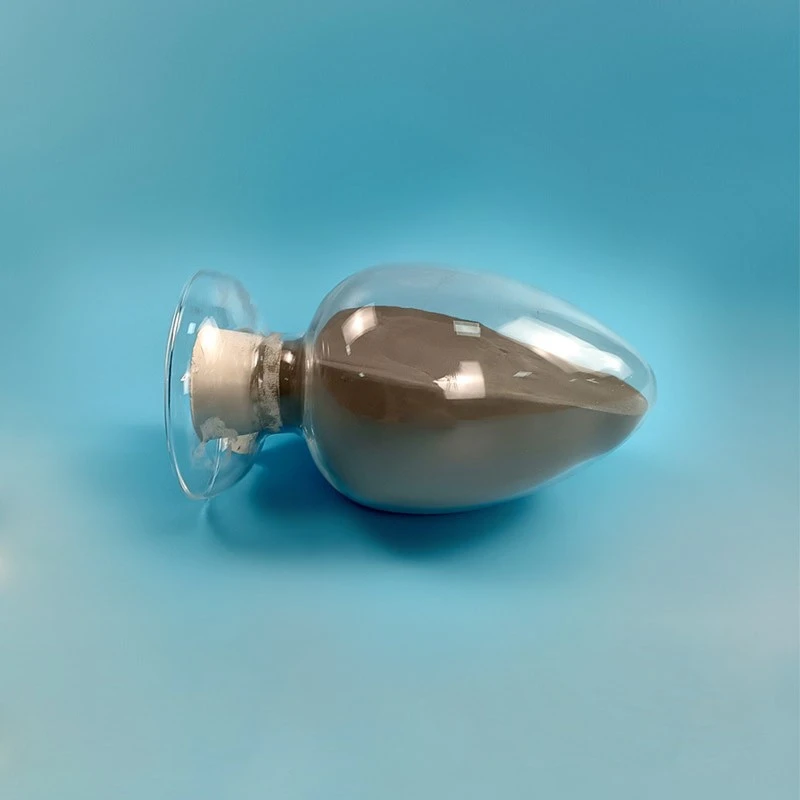

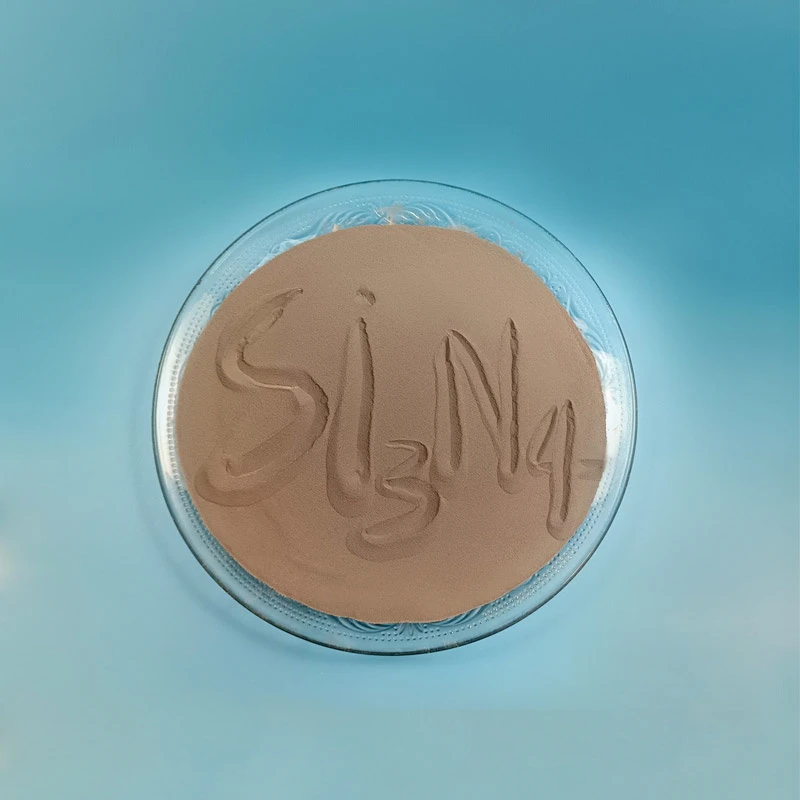

Si₃N₄ Ceramic (Si₃N₄), Silicon Nitride Ceramic

Silicon nitride ceramics (Si₃N₄) yog cov ntaub ntawv siab melting point paub rau lawv qhov tshwj xeeb hardness thiab siab tshuaj inertness. Lawv muaj ib tug tsawg coefficient ntawm thermal expansion, siab thermal conductivity, thiab zoo heev thermal shock kuj. Tsis zoo li cov tsoos nkig ceramics, silicon nitride ceramics tuaj yeem tiv taus qhov cuam tshuam yam tsis yooj yim tawg. Lawv cov thermal expansion coefficient tsis tshua muaj kev ruaj ntseg zoo thaum lub sij hawm hloov kub ceev, tiv thaiv deformation thiab tawg. Cov ceramics muaj kev cuam tshuam zoo thiab lub zog. Cov ntawv thov feem ntau suav nrog cov khoom siv ceramic, thauj khoom-cov kabmob hooks, nrhiav tus pins, thiab cov raj ceramic.
Specifications thiab qhov ntev: Kev ua haujlwm tuaj yeem ua raws li cov duab kos lossis cov qauv.

Xa kev nug

MainKhooms

Ceramic Disc

Nyeem ntxiv

Silicon Nitride Ceramic Sheet

Nyeem ntxiv

Silicon Nitride Base

Nyeem ntxiv

Ceramic Handling Arm

Nyeem ntxiv

Nta

Silicon nitride ceramics (Si₃N₄) yog siab -cov ntaub ntawv zoo tshaj plaws ceramics uas muaj ntau yam zoo heev. Tsis zoo li qhov brittleness ntawm cov tsoos ceramics, lawv cov qauv sab hauv tshwj xeeb zoo cuam tshuam kev ntxhov siab nyob rau hauv qhov tseem ceeb sab nraud, tiv thaiv kev puas tsuaj sai. Qhov no ua rau lawv indispensable nyob rau hauv kev tsim cov khoom tseem ceeb rau aerospace thiab automotive engines uas yuav tsum tau tiv taus siab loads thiab cuam tshuam.

High hardness thiab hnav tsis kam
Siab zog thiab toughness
Zoo siab - kub ua haujlwm

Zoo tshuaj stability
Tsawg coefficient ntawm thermal expansion
Hluav taws xob rwb thaiv tsev zoo

Silicon Nitride Properties

Material Matrix			Silicon Nitride
Cov khoom	Yam khoom	Chav tsev	TSV-SN-GPS-01	TSV-SN-GPS-02
Lub cev khoom	Cov ntsiab lus	%	-	-
	Xim		Greyish Dawb	Greyish Dawb
	Qhov ntom	g/cm³	3.21	3.23
Mechanical Behavior	Vickers Hardness	GPa	13.5	14.8
	Khoov zog	Mpa	720	900
	Compressive zog	Mpa	3200	3200
	Young's Modulus	GPa	300	310
	Poisson tus ratio	/	0.28	-
	Fracture Toughness	Mpa.m^1/2	6.5	7
Thermal khoom	Coefficient ntawm Thermal Expansion	10^-6/ degree	2.8	2.8
	Thermal conductivity	W/(m.K)	26	28
	Tshwj xeeb kub muaj peev xwm	J/(g.K)	0.64	0.64
	Ua haujlwm kub siab tshaj plaws	degree	1200	1200
Hluav taws xob khoom	Dielectric zog	kv/mm	13	13
	Dielectric qhov tsis tu ncua (1MHz)	-	9.6	9.6
	Dielectric Losses (1MHz)	(X10^-4)	3	3
	Volume Resistivity 20 degree	Ω cm	>10¹⁴	>10¹⁴
	Volume Resistivity 300 degree	Ω cm	10¹²	10¹²

* Cov khoom muaj nqis uas tau teev tseg yog cov txiaj ntsig nruab nrab tau los ntawm cov qauv kuaj thiab tsis tau lees paub. Thov nco ntsoov tias cov txiaj ntsig no yuav txawv rau cov khoom tsim tshwj xeeb.

Silicon nitride Daim ntawv thov nyob rau hauv ntau yam lag luam

Automotive Kev Lag Luam: Hauv cov cav tsheb, silicon nitride ceramics tuaj yeem siv los tsim cov khoom xws li turbocharger rotors, li qub, thiab pistons.
Machinery Manufacturing: Siv los tsim ntau yam siab -kev ua tau zoo ntawm cov khoom siv kho tshuab, xws li cov cuab yeej txiav, cov kabmob, thiab cov ntsaws ruaj ruaj. Silicon nitride ceramic bearings thiab cov ntsaws ruaj ruaj tuaj yeem ua haujlwm ruaj khov nyob rau hauv siab -ceev, siab - kub, thiab siab -load puag ncig, txo qhov tshwm sim ntawm kev ua tsis tiav.
Electronics Kev Lag Luam: Siv los ua cov khoom ntim hluav taws xob thiab cov khoom siv insulating. Hauv kev ntim khoom ntawm kev sib xyaw ua ke thiab cov khoom siv hluav taws xob hluav taws xob, silicon nitride ceramics muab kev tswj xyuas thermal zoo thiab hluav taws xob rwb thaiv tsev.
Tshuaj thiab Metallurgical Industries: Cov tshuaj stability thiab hnav tsis kam ntawm silicon nitride ceramics zoo tiv thaiv corrosion los ntawm cov tshuaj thiab yaig los ntawm cov kua. Hauv kev lag luam metallurgical, lawv tuaj yeem siv los tsim cov khoom xws li hauv ob sab phlu rau siab -kub rauv thiab crucibles.

Semiconductor & Electronics

Cov cuab yeej kho mob

Khoom noj khoom haus & Ua liaj ua teb

FPD/LED

Khoom siv & Machinery

Petrol & Tshuaj

Auto & Tsheb thauj mus los

Zog & Lub Zog
