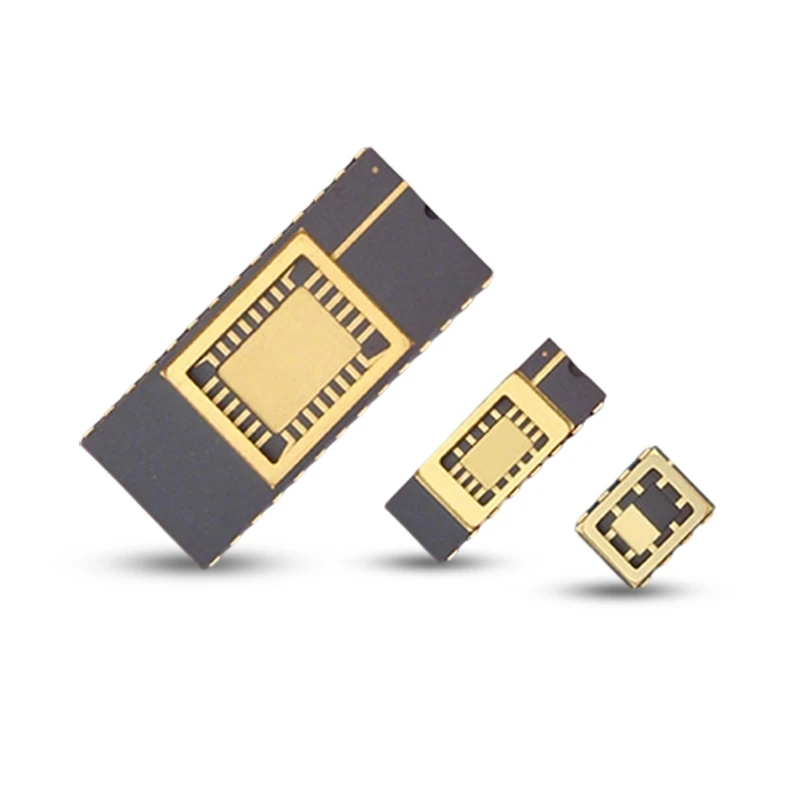

Name: Tuam Tshoj Ceramic Dual Hauv - kab Pob (CDIP) Chaw tsim khoom Hoobkas - OEM Service - Tessvida
Brand: Tessvida
SKU: 310712796

Product Description

Lub dual - kab ceramic los ntawm - pob qhov yog tsim los rau siab -kawg daim ntawv thov semiconductor, xa cov roj zoo tshaj - nruj tiv thaiv thiab kev tswj xyuas thermal. Los ntawm kev sib koom ua ke siab -cov dej kub ua haujlwm tau zoo nrog kev sib txuas seam welding lossis alloy solder sealing thev naus laus zis, nws tsim ib puag ncig ruaj khov uas tiv thaiv cov qauv tseem ceeb sab hauv los ntawm kev cuam tshuam sab nraud. Siv cov txheej txheem ntau txheej txheej ceramic sintering, peb ua kom siab - kev ntseeg siab ntawm cov khoom siv hluav taws xob. Nrog kev xaiv cov khoom siv tau yooj yim thiab txoj kev sib khi, cov pob no muab ib qho - nres kev daws teeb meem rau kev ua cov teeb liab thiab kev tswj fais fab hauv ib puag ncig nyuaj.

Nta

High gas nruj
Zoo heev thermal stability
Superior siab -frequency kev ua tau zoo
Kub thiab corrosion kuj
Muaj zog hluav taws xob tiv thaiv

Integrated heat sink tsim muaj peev xwm
Tsawg resistivity
Kev ua haujlwm siab rwb thaiv tsev
High hardness thiab cuam tshuam tsis kam
High noo noo tsis kam

Main Model Rooj (mm)

CDIP ntim nta 2.54mm suab nrog tus pin suav rau 64, muab nqaim (7.62mm), nruab nrab (10.16mm), thiab dav (15.24mm) spans. Cov kev xaiv muaj xws li cov dab dej kub sib xyaw ua ke thiab cov txheej txheem sib khi los ntawm kev sib txuas seam welding lossis alloy solder reflow, dav siv rau ICs, optocouplers, thiab MEMS xav tau kev ntseeg siab.

Yam khoom qauv	Ceramic Lub Cev Loj	Lead Pitch	Sealing Area	Tuag Attach Area	Tag nrho Thickness
D48L2-01	60.96×15.00	2.54	12.70×12.70	8.89×8.89	2.40
D40L2-01	50.80×15.00	2.54	12.70×12.70	7.87×7.87	2.40
HD36-01	45.72×14.98	2.54	20.20×8.54	24.70×14.50	2.00
D28S2-03	38.60×7.37	2.54	38.40×7.20	2.10×3.30	3.70
D28S2-01	35.56×7.37	2.54	11.80×7.20	7.11×5.59	2.15
D28L2-01	35.56×15	2.54	12.70×12.70	6.40×6.40	2.50
D24S2-04	30.48×7.37	2.54	11.94×7.36	5.75×3.80	1.75
D24S2-02	33.50×7.37	2.54	32.80×7.10	3.80×2.85	3.50
D24S2-01	30.48×7.37	2.54	14.40×7.20	9.15×4.45	2.16
D24L2-01B	30.48×15.00	2.54	12.70×12.70	6.40×6.40	2.40
D24L2-01	30.48×15.00	2.54	12.70×12.70	6.40×6.40	2.40
D18M2-01	22.86×9.91	2.54	9.40×8.70	5.50×5.00	2.40
D16S2-11	20.60×7.37	2.54	19.20×7.00	3.30×5.00	2.80
D16S2-06	20.32×7.37	2.54	16.60×7.20	2.60×3.20	3.30
D16S2-05	20.00×7.37	2.54	19.60×7.00	3.90×5.40	3.40
D16S2-02/K	20.32×7.37	2.54	11.80×7.20	5.60×3.80	2.10
D16S2-02C	20.32×7.37	2.54	11.80×7.20	5.60×3.80	2.10
D16S2-02B	20.32×7.37	2.54	11.80×7.20	5.60×3.80	2.10
D16S2-02A	20.32×7.37	2.54	11.80×7.20	5.60×3.80	2.10
D16S2-02	20.32×7.37	2.54	11.80×7.20	5.60×3.80	2.10
D08S2-12	9.70×7.37	2.54	7.70×7.00	4.20×5.00	2.10
D08S2-11A	9.70×7.37	2.54	9.30×7.20	2.70×2.50	3.40
D08S2-03B	9.90×7.37	2.54	9.70×7.17	3.55×5.37	3.00
D08S2-03A	9.90×7.37	2.54	9.70×7.17	3.55×5.37	3.00
D08S2-01	10.16×7.37	2.54	8.80×6.90	5.10×3.40	2.10
D08M-04	19.46×9.91	7.62	19.10×8.80	7.60×4.40	3.50
D08M-01A	14.22×10.03	2.54	13.40×9.60	9.60×8.10	30
D06S2-02	9.00×7.37	2.54	7.20×6.20	3.70×3.00	3.10
D06S2-01	9.70×7.37	2.54	9.30×6.90	7.30×3.30	3.50
D04S2-01	4.70×6.60	2.54	6.60×4.70	2.60×3.00	2.90

Ceramic Expertise

Tessvida yog tus kws tshaj lij Total Kit Solutions (TKS), ua haujlwm tseem ceeb hauv kev lag luam: semiconductor & electronics, khoom siv kho mob, FPD/LED, machinery, petrochemicals, auto & Transportation, zog & hwj chim, thiab zaub mov & kev ua liaj ua teb. Nrog rau cov saw hlau loj thiab cov txheej txheem siab heev (isostatic nias, gel casting, nias qhuav), peb muab qhov kawg - mus rau - kawg peev xwm los ntawm kev npaj cov khoom, molding, sintering rau precision machining thiab post- ua.

Rov qab los ntawm kev txawj ntse tob hauv siab - ceramics purity thiab muaj zog sib koom ua ke, peb cov kev pabcuam hloov tau yooj yim raws li cov neeg siv khoom xav tau los ntawm kev xaiv cov khoom mus rau cov khoom tiav.
