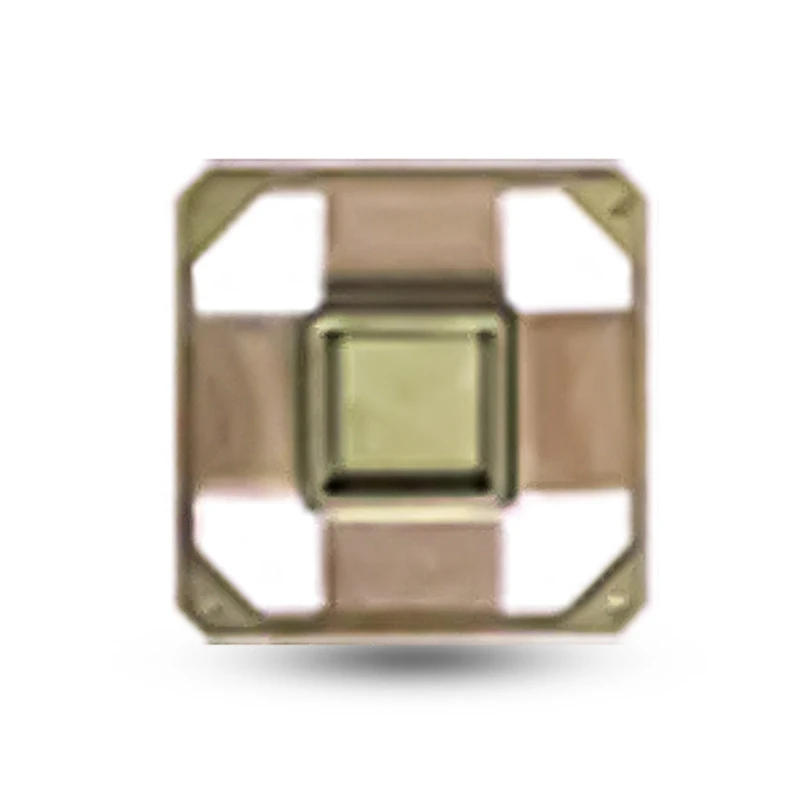

Ceramic Quad Flat Pob (CQFP)

Muaj ntau yam, siab -kev ntseeg tau plaub- ib sab ntawm pob khoom-tus qauv kev lag luam rau kev ua tiav lub tshuab nqus tsev- nruj kev ncaj ncees hauv cov txheej txheem nyuaj.

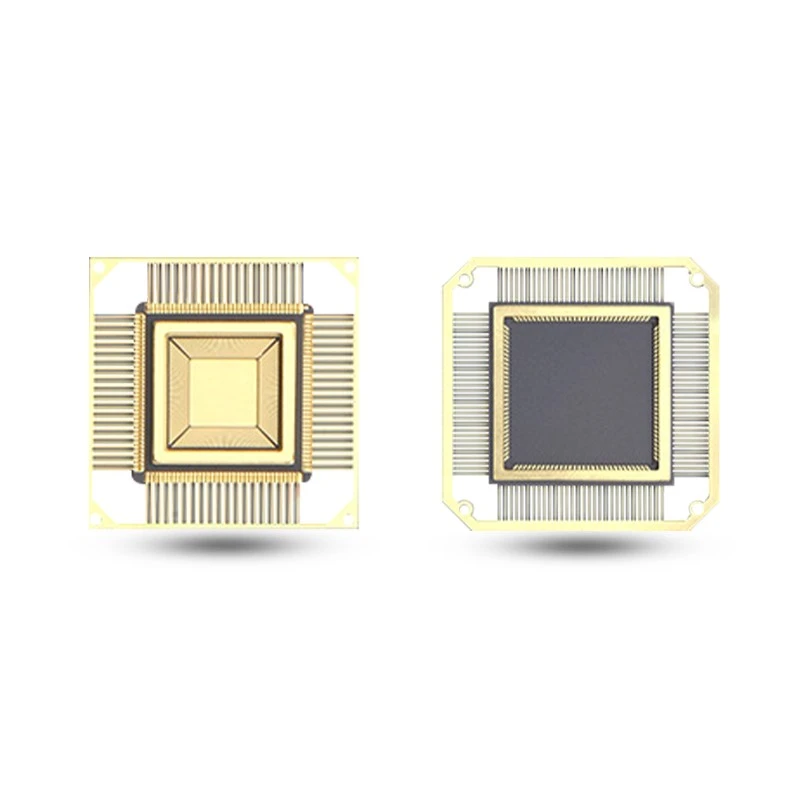

Cov pob zeb ceramic quad tiaj tus (CQFP) yog qhov tseeb - ntim cov khoom nrog plaub -sided pin kev npaj, muaj npe nrov rau nws lub teeb yuag, compact loj, thiab ntim ntim siab. Hauv cov ntawv thov niaj hnub semiconductor, CQFP zoo tiv thaiv cov khoom rhiab rau sab hauv vim nws cov khoom siv hluav taws xob zoo heev thiab yog sib xws nrog ntau yam siab -cov logic tswj modules.
Peb cov khoom lag luam muaj cov kev xaiv ua tau zoo tshaj plaws, nrog rau cov qauv tshwj xeeb xws li 1.27mm, 1.00mm, 0.80mm, 0.65mm, thiab 0.50mm, sib zog ua kom tau raws li cov kev xav tau sib txawv. Txawm hais tias rau qhov tseeb optocouplers, Hall effect sensors, lossis cov khoom siv -lub xeev relays xav tau kev ua haujlwm siab, cov pob zeb ceramic quad tiaj tus (CQFP) muab kev txhawb zog thiab kev txhawb nqa.

Cov ntaub ntawv muaj: alumina, aluminium nitride, iav-ceramic composites, carbide alloys, tungsten-manganese lossis molybdenum-manganese tuab- cov txheej txheem ua yeeb yaj kiab.
Daim Ntawv Thov: Semiconductor & Electronics, Cov Khoom Siv Kho Mob, Zog & Lub Zog, Khoom Siv & Machinery

Xa kev nug

Product Description

Ceramic plaub- sab tiaj pob (CQFP) yog tsim los rau cov ntawv thov hluav taws xob uas xav tau kev ua haujlwm siab SMT. Siv cov pov thawj tuab- zaj duab xis metallization thiab kub- cov thev naus laus zis, cov pob no muab cov roj tshwj xeeb nruj kom tiv thaiv kom tsis txhob ya raws thiab xeb thaum tuav cov teeb liab kev ncaj ncees. Txhawm rau kom haum raws li cov kev xav tau tshwj xeeb thaum hloov khoom lossis kev saib xyuas, peb muab cov khoom siv hloov pauv tau yooj yim thiab cov txheej txheem sib khi, muab cov txheej txheem ntim khoom siv rau cov teeb liab ua thiab kev tswj fais fab hauv qhov xav tau ib puag ncig.

Nta

Superior siab -frequency signal integrity
Kev ntseeg siab nrog cov pa roj- kaw
Muaj zog thermal cycling tsis kam
Tau tshaj cov txheej txheem SMT siab heev
Radiation thiab aging kuj
Zoo heev electromagnetic compatibility (EMC)

Kev ua haujlwm siab rwb thaiv tsev
Tsawg resistivity
Zoo heev corrosion kuj
High noo noo tsis kam
Muaj zog tiv thaiv -electromagnetic cuam tshuam muaj peev xwm
Tsawg thermal expansion coefficient

Main Model Rooj (mm)

CQFP ntim muaj ntau yam khoom siv xws li Alumina, Aluminium Nitride, thiab Kovar, ua tiav los ntawm precision tuab - zaj duab xis metallization txheej. Cov lus qhia tshwj xeeb npog ntau yam ntawm cov ntsiab lus tseem ceeb ntawm 1.27mm txog 0.50mm, ua tiav kev sib xyaw ua ke zoo tshaj plaws ntawm kev ntseeg siab thiab siab -nrhiav kev ceev.

Yam khoom qauv	Ceramic Lub Cev Loj	Lead Pitch	Sealing Area	Tuag Attach Area	Tag nrho Thickness
Q18-01H	9.40×13.90	1.27	13.80×9.30	4.40×8.90	1.40

Ceramic Expertise

Tessvida yog tus kws tshaj lij Total Kit Solutions (TKS), ua haujlwm tseem ceeb hauv kev lag luam: semiconductor & electronics, khoom siv kho mob, FPD/LED, machinery, petrochemicals, auto & Transportation, zog & hwj chim, thiab zaub mov & kev ua liaj ua teb. Nrog rau cov saw hlau loj thiab cov txheej txheem siab heev (isostatic nias, gel casting, nias qhuav), peb muab qhov kawg - mus rau - kawg peev xwm los ntawm kev npaj cov khoom, molding, sintering rau precision machining thiab post- ua.

Rov qab los ntawm kev txawj ntse tob hauv siab - ceramics purity thiab muaj zog sib koom ua ke, peb cov kev pabcuam hloov tau yooj yim raws li cov neeg siv khoom xav tau los ntawm kev xaiv cov khoom mus rau cov khoom tiav.
