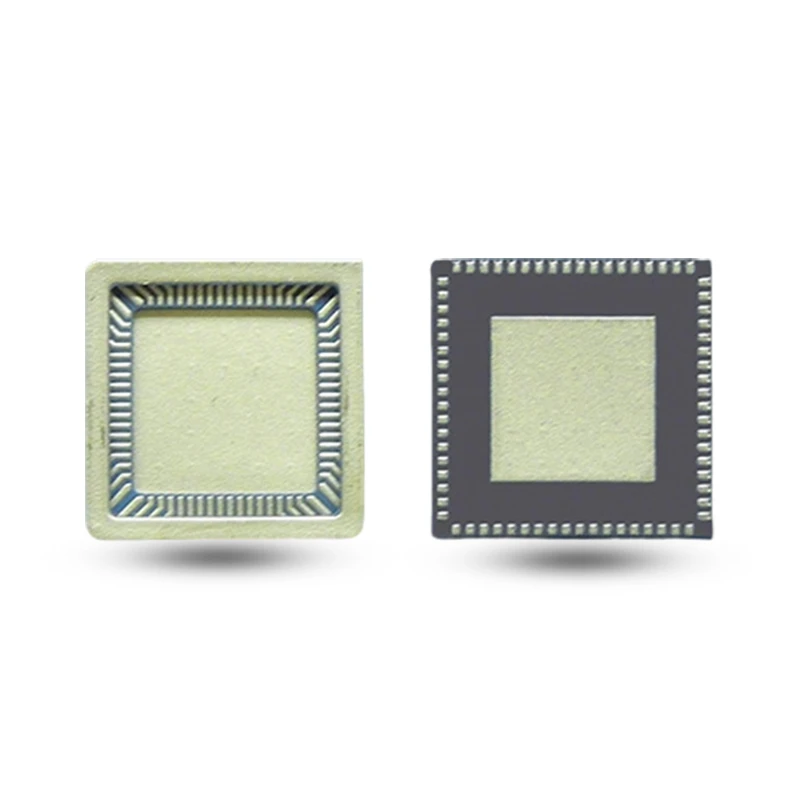

Ceramic Quad Flat Tsis yog -Lead (CQFN)

Cov qauv siv lead ua tsis zoo nrog ultra-tsis tshua muaj inductance, zoo tagnrho rau RF thiab siab - cov ntawv thov zaus.

Ceramic plaub-sab tsis muaj-pins pob (CQFN) yog ib qho cim ntawm miniaturization hauv semiconductor ntim. Nws hloov cov pins ntev ntev nrog kev sib txuas ncaj qha ntawm lub ncoo hauv qab, ua kom muaj kev sib cog lus thiab lub teeb yuag thaum ua kom zoo dua cov teeb liab kis tau tus mob.
Ceramic plaub-side pinless pob yog tsim los rau cov cuab yeej precision nrog qhov chaw txwv, txhawb siab - ceev AD/DA converters, DDS zaus synthesizers, thiab lwm yam khoom. Nws kuj pom cov ntawv thov hauv cov qauv tseem ceeb xws li cov khoom siv acoustic yoj, RF, thiab microwave systems. Tsis tas li ntawd, rau cov khoom siv Hall effect, me me optocouplers, thiab cov chav sib cais sib xyaw ua ke, CQFN ua haujlwm raws li kev tiv thaiv kev ruaj ntseg.

Cov ntaub ntawv muaj: alumina, aluminium nitride, qis-kub sintered ceramics, siab-kub sintered ceramics, tungsten-manganese lossis molybdenum-manganese tuab- zaj duab xis metallization.
Daim Ntawv Thov: Semiconductor & Electronics, Cov Khoom Siv Kho Mob, Zog & Lub Zog, Khoom Siv & Machinery

Xa kev nug

Product Description

Ceramic plaub-sab tsis muaj-pins pob (CQFN) yog tsim los rau qhov loj me thiab kev ua haujlwm siab. Nws tsis muaj -pins tsim tau zoo txo cov kab mob cuam tshuam, ua kom muaj kev ruaj ntseg hauv siab -ntau zaus teeb liab ib puag ncig xws li RF thiab microwave daim ntawv thov, ua rau nws yog ib qho kev xaiv zoo tshaj plaws rau siab - ceev Circuit Court ntim. Crafted los ntawm siab -cov khoom siv ceramic, lub pob muaj cov cua sov sai sai, siab -kub tsis kam, thiab huab cua zoo dua- nruj tiv thaiv kom zoo tiv thaiv sab nraud ya raws thiab corrosion, ua kom ntev - lub sijhawm ua haujlwm ruaj khov ntawm cov khoom tseem ceeb. Tsis tas li ntawd, cov khoom muaj kev sib raug zoo nrog PCB boards, yooj yim installation, thiab zoo heev durability. Peb muab kev daws teeb meem los ntawm kev xaiv cov khoom siv rau kev tsim qauv, kev tshaj lij daws teeb meem ntau yam kev ntim khoom hluav taws xob.

Nta

Superior siab -frequency impedance tswj muaj peev xwm
Tsawg thermal kuj txoj kev
Lead-dawb qauv tshem tawm cov kab mob parasitic resonance
Kev ntseeg siab nrog huab cua- ntim ntim
Zoo heev CTE txuam
Txhawb siab -kev sib tshuam thiab kev sib koom ua ke

Kev ua haujlwm siab rwb thaiv tsev
Tsawg resistivity
Zoo heev corrosion kuj
High noo noo tsis kam
Tsawg thermal expansion coefficient

Main Model Rooj (mm)

CQFN ntim khoom muaj cov kev xaiv xws li HTCC, LTCC, Alumina, thiab Aluminium Nitride, muaj kev cob qhia tuab - zaj duab xis metallization kom ntseeg tau tias muaj zog thiab kev ua haujlwm zoo dua.

Yam khoom qauv	Ceramic Lub Cev Loj	Lead Pitch	Sealing Area	Tuag Attach Area	Tag nrho Thickness
CQFN72-01	10.00×10.00×1.50	0.5	9.80×9.80	6.40×6.40	1.5

Ceramic Expertise

Tessvida yog tus kws tshaj lij Total Kit Solutions (TKS), ua haujlwm tseem ceeb hauv kev lag luam: semiconductor & electronics, khoom siv kho mob, FPD/LED, machinery, petrochemicals, auto & Transportation, zog & hwj chim, thiab zaub mov & kev ua liaj ua teb. Nrog rau cov saw hlau loj thiab cov txheej txheem siab heev (isostatic nias, gel casting, nias qhuav), peb muab qhov kawg - mus rau - kawg peev xwm los ntawm kev npaj cov khoom, molding, sintering rau precision machining thiab post- ua.

Rov qab los ntawm kev txawj ntse tob hauv siab - ceramics purity thiab muaj zog sib koom ua ke, peb cov kev pabcuam hloov tau yooj yim raws li cov neeg siv khoom xav tau los ntawm kev xaiv cov khoom mus rau cov khoom tiav.
