Name: Tuam Tshoj Ceramic Leadless Chip Carrier (CLCC) Chaw tsim tshuaj paus Hoobkas - OEM Service - Tessvida
Brand: Tessvida
SKU: 310713272

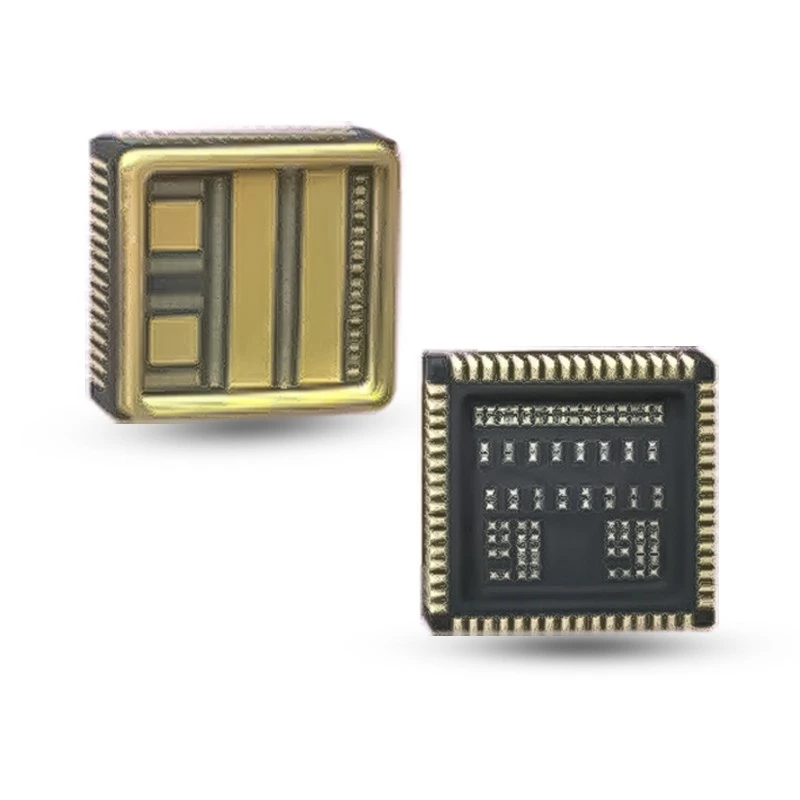

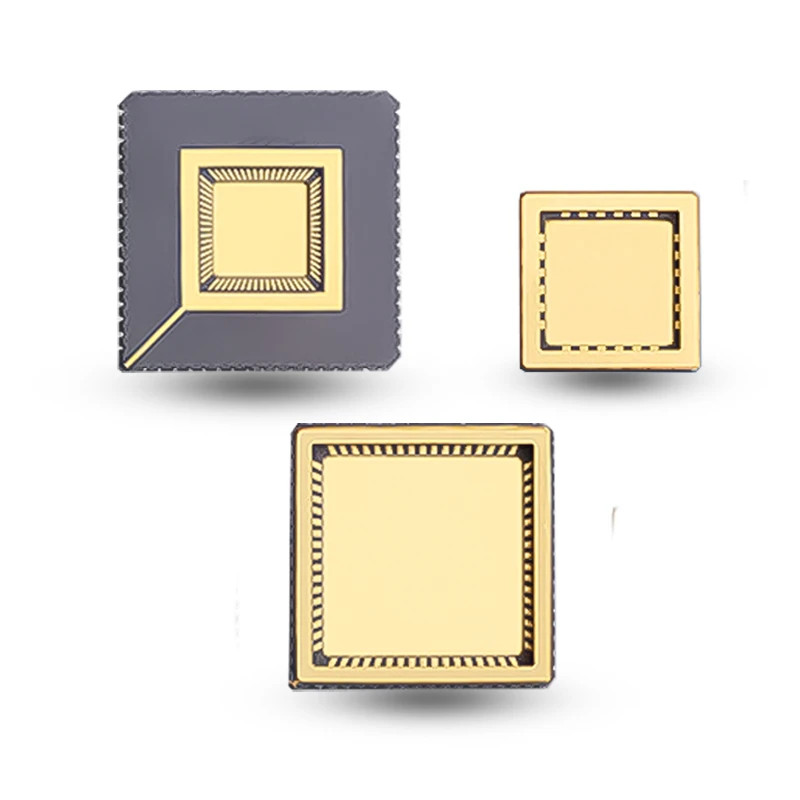

Ceramic Leadless Chip Carrier (CLCC)

Leadless nto-mount tsim rau minimized teeb liab txoj kev, tshwj xeeb engineered rau qhov chaw- txwv thiab RF-sensitive sensor daim ntaub ntawv.

Ceramic leadless nti carrier (CLCC) yog ib qho kev ntim khoom zoo nyob rau hauv precision semiconductors. Tsis zoo li cov hlau ua ib txwm siv, nws txuas cov khoom siv los ntawm cov ntaub qhwv hlau nyob ib ncig ntawm lub qhov rooj, muab qhov zoo ntawm qhov loj thiab qhov hnyav. Qhov no ua rau nws zoo tagnrho rau cov ntawv thov uas xav tau qhov chaw ua haujlwm siab thiab sib dhos ntom ntom.
CLCC tej pob khoom muaj nyob rau hauv ob txoj kev teeb tsa: dual-sab lossis quad-sab, nrog tus qauv pin pitches ntawm 1.27mm thiab 1.00mm. Hauv kev siv cov tswv yim, CLCC tau txais txiaj ntsig zoo txhawb siab -cov haujlwm ua haujlwm logic ua haujlwm thiab cov khoom siv hluav taws xob tshwj xeeb, ua rau nws nyiam ntim cov tshuaj kom ntseeg tau ntev - lub sijhawm ua haujlwm ruaj khov ntawm cov khoom siv hluav taws xob.

Cov ntaub ntawv muaj: alumina, aluminium nitride, iav-ceramic composites, carbide alloys, tungsten-manganese lossis molybdenum-manganese tuab- zaj duab xis metallization.
Daim Ntawv Thov: Semiconductor & Electronics, Cov Khoom Siv Kho Mob, Zog & Lub Zog, Khoom Siv & Machinery

Xa kev nug

Product Description

Ceramic leadless chip carrier (CLCC) tau txais kev lees paub kev lag luam feem ntau vim nws cov kab mob qis qis tsim, uas txo cov teeb liab cuam tshuam thiab txhim kho kev sib kis ceev. Ntxiv mus, cov khoom siv ceramic nws tus kheej muab txoj hauv kev zoo thermal conduction, sai sai dissipating sab hauv tshav kub kom ntseeg tau qhov kev ntseeg ntawm precision semiconductors nyob rau hauv siab loads. Peb cov txheej txheem tuab - zaj duab xis metallization txuas ntxiv ua rau cov ntaub thaiv npog tshwj xeeb rau kev hloov pauv ib puag ncig.

Nta

Tsawg parasitic nyhuv
Zoo heev thermal conduction txoj kev
High mechanical impact resistance
Ntev -lub sij hawm ib puag ncig stability
Tau tshaj - ceev PCB routing
Siab hardness

Superior rwb thaiv tsev kev ua tau zoo
Tsawg resistivity
Zoo heev corrosion kuj
High noo noo tsis kam
Muaj zog electromagnetic cuam tshuam (EMI) tiv thaiv

Main Model Rooj (mm)

CLCC ntim khoom muaj kev xaiv xws li Alumina, Aluminium Nitride, thiab Kovar, ua ke nrog precision tuab - zaj duab xis metallization. Tshaj li tus qauv 1.27mm thiab 1.00mm pitches, peb muab cov kev daws teeb meem rau tag nrho qhov ntev, pad layouts, thiab cov kab noj hniav sab hauv raws li koj cov kev xav tau ntawm hluav taws xob engineering.

Yam khoom qauv	Ceramic Lub Cev Loj	Lead Pitch	Sealing Area	Tuag Attach Area	Tag nrho Thickness
C04D2-01	4.40×7.00	-	6.50×4.20	2.50×3.00	2.40

Kev Pabcuam

Customized khoom raws li cov neeg siv khoom xav tau.
Koom tes nrog cov neeg siv khoom los txhim kho cov khoom tsim, txhim kho kev ua tau zoo, thiab txo cov nqi.
Daim ntawv thov khoom siv taug qab thiab ua raws- cov kev pabcuam.

Ceramic Expertise

Tessvida yog tus kws tshaj lij Total Kit Solutions (TKS), ua haujlwm tseem ceeb hauv kev lag luam: semiconductor & electronics, khoom siv kho mob, FPD/LED, machinery, petrochemicals, auto & Transportation, zog & hwj chim, thiab zaub mov & kev ua liaj ua teb. Nrog rau cov saw hlau loj thiab cov txheej txheem siab heev (isostatic nias, gel casting, nias qhuav), peb muab qhov kawg - mus rau - kawg peev xwm los ntawm kev npaj cov khoom, molding, sintering rau precision machining thiab post- ua.

Rov qab los ntawm kev txawj ntse tob hauv siab - ceramics purity thiab muaj zog sib koom ua ke, peb cov kev pabcuam hloov tau yooj yim raws li cov neeg siv khoom xav tau los ntawm kev xaiv cov khoom mus rau cov khoom tiav.
